LMZ-II/MLL-II Plum-shaped Flexible Coupling

Integral, With Brake Wheel

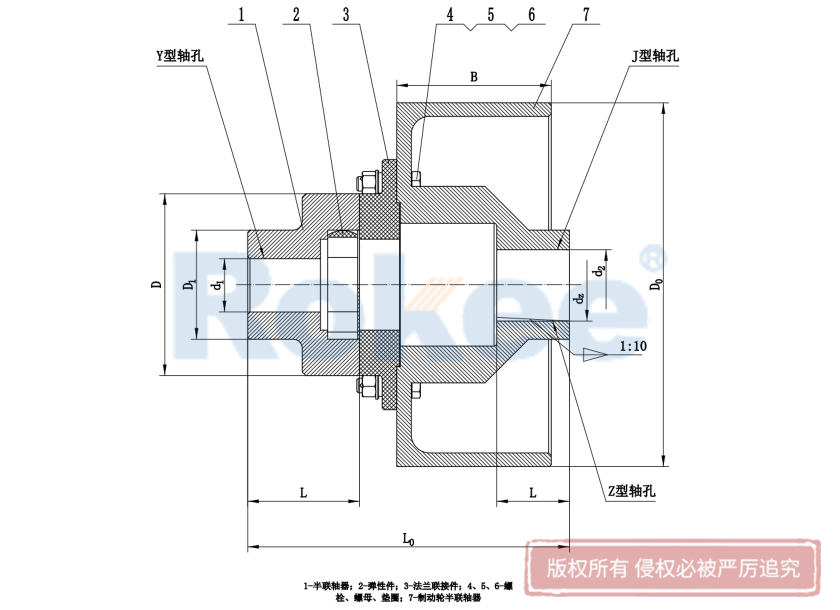

LMZ- II Plum-shaped Flexible Coupling adopts integral brake wheel design, suitable for situations where braking is required.

LMZ-II/MLL-II Plum-shaped Flexible Coupling

Model	Allowable Rotating Torque MP/(N·m)			Allowable Rotating Speed mp (r·min)	Shaft Hole Diameter	Shaft Hole Length		L₀ mm	D₀ mm	B mm	D mm	D₁ mm	d₀ mm	h mm	Rotational Inertia kg·m²	Quality kg
	Hardness of Elastic Parts HA				d₁/mm, d₂/mm, d₃/mm	Y型	J、Z型
	≥75	≥85	≥94		d₁/mm, d₂/mm, d₃/mm	L	L₁
LMZ4-II-160	140	250	400	4750	25,28	62	44	190.5	160	70	105	72	10	20	2.56	10
					30,32,35,38	82	62	210.5
					40,42	112	84	265.5
LMZ4-II-200	140	250	400	3800	25,28	62	44	215.5	200	85	105	72	10	20	5.6	14
					30,32,35,38	82	60	235.5
					40,42	112	84	265.5
LMZ5-II-200	250	400	800	3800	30,32,35,38	82	60	242	200	85	125	90	122	25	6.6	16.5
LMZ5-II-200	250	400	800	3800	40,42,45,48	112	84	272	200	85	125	90	122	25	6.6	16.5
LMZ6-II-200	400	630	1200	3800	35,38	82	66	249	200	85	145	104	140	30	8.12	20.3
LMZ6-II-200	400	630	1200	3800	40,42,45,48,50,55	112	84	279	200	85	145	104	140	30	8.12	20.3
LMZ6-II-250	400	630	1200	3050	35,38	82	60	279	250	105	145	104	140	30	16	25.6
LMZ6-II-250	400	630	1200	3050	40,42,45,48,50,55	112	84	309	250	105	145	104	140	30	16	25.6
LMZ7-II-250	710	1120	2240	3050	45,48,50,55	112	84	312	250	105	170	130	166	30	19.6	31.4
LMZ7-II-250	710	1120	2240	3050	60,63,65	142	107	372	250	105	170	130	166	30	19.6	31.4
LMZ7-II-315	710	1120	2240	2400	45,48,50,55	112	84	312	315	135	170	130	166	30	38.2	38.5
LMZ7-II-315	710	1120	2240	2400	60,63,65	142	107	372	315	135	170	130	166	30	38.2	38.5
LMZ8-II-315	1120	1800	3550	2400	50,55	112	84	351	400	170	200	156	196	35	55	55.5
LMZ8-II-315	1120	1800	3550	2400	60,63,65,70,71,75	142	107	416	400	170	200	156	196	35	55	55.5
LMZ8-II-400	1120	1800	3550	1900	50,55	112	84	351	400	170	200	156	196	35	120.5	75.3
LMZ8-II-400	1120	1800	3550	1900	60,63,65,70,71,75	142	107	416	400	170	200	156	196	35	120.5	75.3
LMZ9-II-400	1800	2800	5600	1900	60,63,65,70,71,75	142	107	421	400	170	230	180	225	35	147.5	92.9
LMZ9-II-400	1800	2800	5600	1900	80,85,90,95	172	132	451	400	170	230	180	225	35	147.5	92.9
LMZ9-II-500	1800	2800	1500	1500	60,63,65,70,71,75	142	107	275	500	210	230	180	225	35	345	138
LMZ9-II-500	1800	2800	1500	1500	80,85,90,95	172	132	451	500	210	230	180	225	35	345	138
LMZ10-II-500	2800	4500	9000	1500	70,71,75	142	107	490	500	210	260	205	255	45	450	180
					80,85,90,95	172	132	520
					100,110	212	167	560
LMZ11-II-630	4000	6300	12500	1200	80,85,90,95	172	132	580	630	265	300	245	295	50	992	250
LMZ11-II-630	4000	6300	12500	1200	100,110,120	212	167	620	630	265	300	245	295	50	992	250
LMZ12-II-710	7100	11200	20000	1050	90,95	172	132	630	710	300	360	300	356	55	1462	290
					100,110,120,125	212	167	670
					130	252	202	710
LMZ13-II-800	8000	12500	25000	950	100,110,120,125	212	167	710	800	340	400	335	391	55	2048	320
LMZ13-II-800	8000	12500	25000	950	130,140	252	202	750	800	340	400	335	391	55	2048	320
